Kawasaki FR600V Troubleshooting

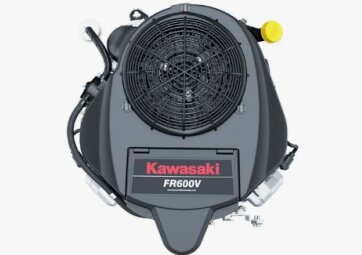

Engine Model: Kawasaki FR600V

Engine Type: 4-cycle 2-cylinder air-cooled gasoline engine

Total Displacement: 36.8 cu.in (603 cc)

Rated Engine Power: 17 Hp (12.7 kW)

Carburetor Type: One-barrel, fixed main jet

____________________________________________________________________________________

Engine starts up hard or won't start

No gasoline in tank - Fill fuel up.
Low-quality gasoline - Change gasoline.
Air or water in fuel system - Remove water or air from fuel system.
Faulty spark plug wire connection - Inspect spark plug wiring connection, change or repair.
Spark plug is defective - Replace spark plug.
Dirty fuel filter - Change fuel filter.
Defective safety switch - Replace if required.
Carburetor incorrectly set - Set carb correctly.
Poor engine compression - Check cylinder block and replace damaged components.
Incorrectly adjusted or damaged throttle cable - Change cable or adjust properly.

Unstable engine running

Clogged cooling fins - Wash or clean as required.
Ignition system is defective - Inspect ignition system and change failed components.
Defective or stuck choke cable - Replace or clean the cable.
Air filter element is clogged - Service or replace air filter.
Fuel pump is defective or dirty - Check fuel pump and change if required.

Engine starts and stalls suddenly

Spark plug is defective - Spark plug need to be replaced.
Clogged or faulty carburetor - Carburetor needs to be replaced or cleaned.
Defective ignition coil - Ignition coil must be replaced.
Bad or damaged valve springs - Replace valve springs.
Stuck valves - Valves need to be cleaned.

Engine overheats

Engine oil level is insufficient - Add oil to the engine crankcase.
Excessive engine load - Load reducing is recommended.
Plugged cooling fins - Need to clean or wash.
Carburetor mixture is too lean - Use proper settings.
Incorrect ignition timing - Adjust ignition timing correctly.
Wrong valve setting - Adjust valves correctly.

Engine knocks or noises

Stale fuel - Use proper fuel.
Excessive engine load - Load reducing required.
Engine oil level is insufficient - Check oil level and add oil as required.
Incorrectly adjusted low idle speed - Adjust idle speed.
Fuel pump is faulty or clogged - Test fuel pump and change if necessary.
Main bearings or crankshaft are worn out - Change defective components as required.
Valve clearance is wrong - Adjust valve clearance according to specifications.
Cylinder bore or piston rings are worn - Change defective parts.

Engine power is insufficient

Carburetor is clogged or improperly adjusted - Adjust carburetor properly or service it.
Plugged air filter - Clean or change air filter.
Fuel pump is faulty or clogged - Check fuel pump and change if required.
Defective ignition system - Check ignition and replace faulty components.
Defective cylinder head gasket - Install new head gasket.
Valves are stuck or burned - Change or service valves.
Damaged or worn push rod - Replace push rod.
Cylinder block parts are worn out - Change defective parts.
Clogged oil filter (if equipped) - Clean or change oil filter.

High fuel consumption

Throttle opening is not full - Adjust or change throttle cable.
Improper carburetor main jet adjustment - Adjust the carburetor main jet properly.
Loose or faulty spark plug - Replace or tighten spark plug.
Worn, stuck, or burned valves - Change or service valves.
Worn sleeve, piston, or rings - Change faulty components.
Excessive valve clearance - Adjust valve clearance according to specifications.

Engine oil consumption is too high

Seals or gaskets are wearing excessively - Install new components.
Worn valve stems and valve guides - Install new valves.
Worn or stuck piston rings - Change the piston rings as required.
Scuffed piston or cylinder liner - Inspect liner and piston, change as necessary.
Breather pipe or hose is plugged - Service or replace.
