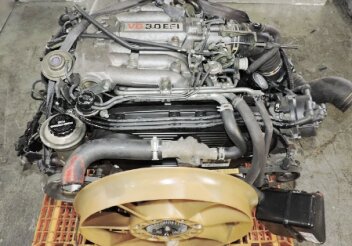

Toyota 3VZ-E Troubleshooting
Engine Model: Toyota 3VZ-E |
Engine Type: 4-cycle V6-cylinder DOHC gasoline engine |
Total Displacement: 180.5 cu.in (3.0 L) |
Rated Engine Power: 185 Hp (136 kW) at 5800 rpm |
Fuel System: Multiport fuel injection (MFI) |
____________________________________________________________________________________
Engine difficult to start or doesn't start |
No fuel in fuel tank - Fill fuel up.
Improper fuel grade - Use correct gasoline grade.
Dirty fuel lines - Inspect and clean.
Loose or disconnected spark plug wire - Check the spark plug wire connection, repair or replace.
Faulty spark plug - Change spark plug.
Ignition failure - Inspect ignition system and change faulty parts.
Plugged fuel filter - Change fuel filter.
Fuel lines clogging - Clean fuel lines.
Dirty or defective fuel pump - Test fuel pump and replace if necessary.
Clogged or damaged fuel injectors - Clean or install new fuel injectors.
Low compression - Check and replace worn parts.
Engine runs unevenly |
Ignition system problems - Check ignition and replace faulty components.
Plugged air filter - Clean or replace air filter.
Damaged spark plug - Spark plug need to be replaced.
Clogged or damaged fuel pump - Service or change fuel pump.
Incorrect valve clearance - Adjustment procedure required.
Ignition timing is incorrect - Adjust ignition timing correctly.
Low idle speed setting is not correct - Correct the settings.
Engine stops after starting |
Spark plug is damaged - Spark plug need to be replaced.
Dirty or defective fuel injectors - Test fuel injectors and replace if necessary.
Damaged ignition coil - Change ignition coil as required.
Valve springs are damaged or weak - Replace valve springs.
Valves sticking - Valves must be cleaned.
Engine overheating |
Engine oil level low - Check and refill engine oil.
Engine is running overloaded - Reduce engine load.
Dirty fuel injectors - Check fuel injectors and clean if necessary.
Ignition timing is improper - Adjust ignition timing correctly.
Improper valve setting - Valves needs to be set correctly.
Clogged radiator fins or damaged radiator cap - Clean radiator or replace cap.
Low engine coolant - Top up coolant fluid and check system for leaks.
Damaged thermostat - Thermostat need to be replaced.
Faulty water pump - Change water pump.
Engine noises or knocks |
Stale fuel - Use proper gasoline.
Engine is under excessive load - Reduce the load.
Insufficient engine oil - Need to add engine oil.
Low idle speed setting is not correct - Adjust as required.
Fuel pump is dirty or defective - Inspect fuel pump and change as required.
Worn crankshaft or main bearings - Change or repair worn components.
Excessive valve clearance - Adjust valve clearance according to specifications.
Piston rings or cylinder bore are worn - Replace faulty components.
Lack of engine power |
Fuel injectors are defective or dirty - Inspect fuel injectors and change as required.
Plugged air filter - Clean or replace air filter.
Fuel pump is dirty or defective - Clean or change fuel pump.
Ignition system malfunction - Check ignition and replace faulty components.
Damaged cylinder-head gasket - Install new head gasket.
Stuck or burned valves - Replace or clean valves.
Cylinder block parts are damaged - Change defective parts.
Plugged oil filter - Service or change oil filter.
Excessive fuel consumption |
Clogged air filter - Change or clean air filter.
Fuel injectors are dirty or defective - Inspect fuel injectors and change as required.
Spark plug is loose or defective - Spark plug need to be tightened or replaced.
Improper ignition timing - Adjust ignition timing correctly.
Stuck, burned, or worn valves - Clean or change valves.
Worn sleeve, piston, or rings - Change faulty components.
Improper valve clearance - Check and adjust.
Bad compression - Check and change damaged parts.
Engine consuming too much oil |
Worn gaskets or seals - Worn parts need to be replaced.
Valve stems or guides are damaged - Replace defective valves.
Piston rings are seized or worn - Piston rings need to be replaced.
Cylinder liner or piston is worn - Check liner and piston, change as required.
Engine backfires |
Fuel injectors are clogged - Clean or change fuel injectors.
Dirt in the fuel lines - Fuel lines must be clean.
Ignition timing is wrong - Ignition timing needs to be adjusted correctly.
Valve setting is improper - Set the valves properly.
Air filter element is plugged - Change or service air filter.
