Home / Small Engines / Kawasaki Engines / Kawasaki FH430V

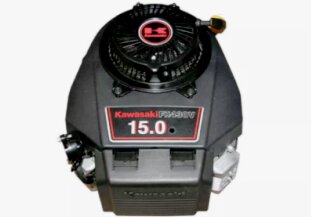

Kawasaki FH430V Troubleshooting

Engine Model: Kawasaki FH430V

Engine Type: 4-cycle 2-cylinder air cooled gasoline engine

Total Displacement: 26.3 cu.in (431 cc)

Rated Engine Power: 15 Hp (11.2 kW)

Carburetor Type: Float, fixed main jet

____________________________________________________________________________________

Engine difficult to start or doesn't start

No gasoline in tank - Fill gasoline up.
Incorrect fuel grade - Change gasoline.
Dirty fuel system - Check and clean.
Spark plug wire connection are damaged - Inspect the spark plug wire connection, replace or repair.
Faulty spark plug - Install new spark plug.
Fuel filter is dirty - Install new filter.
Safety contact for brake pedal defective - Install new part.
Carburetor incorrectly set - Set carb correctly.
Poor compression - Inspect and replace wear parts.
Throttle cable is adjusted incorrectly or damaged - Change cable or adjust correctly.

Unstable engine running

Air intake screen is plugged - Need to wash or clean.
Ignition failure - Test ignition and replace failed parts.
Throttle cable is stuck or defective - Replace or clean the cable.
Plugged air filter - Clean or replace air filter.
Fuel pump is defective or dirty - Service or change fuel pump.

Engine starts but stalls suddenly

Damaged spark plug - Install new spark plug.
Faulty or clogged carburetor - Clean or install new carburetor.
Defective ignition coil - Change ignition coil as required.
Valve springs are loose or broken - Valve springs need to be changed.
Stuck valves - Valves must be cleaned.

Engine overheated

Engine oil level is insufficient - Fill up the oil to required level.
Engine overloaded - Reduce load.
Cooling fins are blocked - Need to clean or wash.
Carburetor is running lean - Adjust carburetor properly.
Incorrect ignition timing - Set the ignition timing properly.
Improper valve setting - Valves needs to be adjusted properly.

Engine knocks or noises

Stale gasoline - Change fuel.
Engine overload - Reduce load.
Engine oil level low - Add oil to the engine crankcase.
Improperly adjusted low idle speed - Adjust as required.
Fuel pump is clogged or faulty - Clean or change fuel pump.
Main bearings or crankshaft wear - Crankshaft or bearings need to be replaced.
Improper valve clearance - Adjust to proper valve clearance.
Piston rings or cylinder bore are worn - Replace faulty parts.

Engine power is insufficient

Carburetor is improperly adjusted or dirty - Clean or correctly adjust carburetor.
Dirty air filter element - Service or change air filter.
Clogged or damaged fuel pump - Clean or install new fuel pump.
Ignition system is defective - Inspect ignition system and change faulty parts.
Defective cylinder head gasket - Install new head gasket.
Stuck or burned valves - Change or service valves.
Worn or bent push rod - Change push rod.
Damaged cylinder block components - Change defective parts.
Dirty oil filter element (if equipped) - Service or change oil filter.

Excessive fuel consumption

Choke doesn't open well - Adjust or replace choke cable.
Improper carburetor main jet adjustment - Adjust main jet as required.
Spark plug is loose or faulty - Spark plug need to be tightened or replaced.
Valves are stuck, burned, or worn - Service or change valves.
Worn rings, piston, or sleeve - Change defective parts.
Valve clearance is incorrect - Adjust valve clearance.

High engine oil consumption

Damaged gaskets or seals - Replace to repair leaks.
Damaged valve guides or valve stems - Replace defective valves.
Worn or broken piston rings - Replace piston rings.
Piston or cylinder liner is scored - Inspect liner and piston, change as necessary.
Plugged breather pipe or hose - Change or service.
